AGN Fit - J033226#
This notebook demonstrates the options for fitting X-ray-IR AGN models to deep observations of a Type-1 AGN, J033226.49-274035.5, in the Chandra Deep Field South. We’ll also see some of the complications that come with trying to fit AGN, especially Type-1s, where sometimes the observations are just outside of the space of our models.
We have pulled the data products from the Chandra Source Catalog for the single deepest observation and produced photometry (in instrumental counts) in 10 energy bands. We caution against using full CSC stacked products without extreme care. The remaining photometry comes from the CANDELS catalogs. Note that the UV-IR photometry and the X-ray observation are not simultaneous.
As we’ll see, this AGN falls relatively far from the LR17 \(L_{\rm 2 keV} - L_{2500}\) relationship (about 1 dex) and has some other quirks with its SED, which makes it difficult to fit with the narrow range of Eddington ratios allowed by the QSOSED model. We’ll thus focus on the more flexible AGN power law model.
Imports#
[48]:
import numpy as np
rng = np.random.default_rng()
import astropy.units as u
from astropy.table import Table
from astropy.io import ascii
import astropy.constants as const
import astropy.units as u
import matplotlib.pyplot as plt
from lightning import Lightning
from lightning.priors import UniformPrior, ConstantPrior
plt.style.use('lightning.plots.style.lightning-serif')
Setup#
Fitting the X-ray model necessarily complicates the setup of Lightning, given that we’re now potentially dealing with two different kinds of data (fluxes and counts) and an ancilliary response function (ARF).
[49]:
phot = Table.read('../photometry/J033226_lightning_input.fits', hdu=1)
arf = Table.read('../photometry/J033226.arf', hdu=1)
xray_phot = Table.read('../photometry/J033226_xray_photometry.fits', hdu=1)
print(xray_phot['ENERG_LO', 'ENERG_HI', 'NET_COUNTS', 'NET_COUNTS_UNC'])
ENERG_LO ENERG_HI NET_COUNTS NET_COUNTS_UNC
------------------ ------------------ ------------------ ------------------
0.5 0.5900861491455028 103.16080387669922 17.06914388649152
0.5900861491455028 0.6964033268267372 105.2053121208817 17.39261962324014
0.6964033268267372 0.8218759147586129 159.13980601012312 22.506860760889985
0.8218759147586129 0.9699551872306948 220.28320154820105 28.426639814154843
0.9699551872306948 1.1447142425533319 252.40434296418772 31.560538780349464
1.1447142425533319 1.3509600385206135 252.55886556331126 31.66427014408168
1.3509600385206135 1.594365613560178 259.58237594091764 32.537870928706354
1.594365613560178 1.8816261304714648 237.50699902462856 30.63509272592005
1.8816261304714648 2.22064303492292 108.6541633292519 19.791982010379417
2.22064303492292 2.6207413942088964 76.37598680311142 16.38448381206126
2.6207413942088964 3.092926394429888 90.13244771562292 17.0625173963706
3.092926394429888 3.650186051359235 63.96931056648404 15.393834234535772
3.650186051359235 4.307848461422399 79.15847060425958 17.17091023650916
4.307848461422399 5.084003419406245 63.43539087488492 16.55353507214626
5.084003419406245 6.0 42.96572103852924 15.947351032754547
[50]:
filter_labels = [s.decode().strip() for s in phot['FILTER_LABELS'][0]]
fnu_obs = phot['FNU_OBS'][0]
fnu_unc = phot['FNU_UNC'][0]
redshift = phot['REDSHIFT'][0]
galactic_NH = phot['GALACTIC_NH'][0]
The X-ray “filters” are uniform sensitive boxes constructed ad-hoc: you can supply any number of X-ray bandpasses, with labels formatted like "XRAY_[LO]_[HI]_[UNIT]" where [UNIT] is any frequency/energy/wavelength unit. Here we use keV.
[51]:
xray_filter_labels = ['XRAY_%.2f_%.2f_keV' % (elo, ehi) for elo,ehi in zip(xray_phot['ENERG_LO'].data, xray_phot['ENERG_HI'].data)]
xray_counts = xray_phot['NET_COUNTS']
xray_counts_unc = xray_phot['NET_COUNTS_UNC']
We now prepend the X-ray counts to the flux array to construct our full “flux” array:
[52]:
obs_full = np.zeros(len(xray_filter_labels) + len(filter_labels))
unc_full = np.zeros(len(xray_filter_labels) + len(filter_labels))
exp_full = np.zeros(len(xray_filter_labels) + len(filter_labels))
filter_labels_full = xray_filter_labels + filter_labels
xray_mask = np.array(['XRAY' in s for s in filter_labels_full])
obs_full[xray_mask] = xray_counts
obs_full[~xray_mask] = fnu_obs * 1e3 # IDL Lightning fnu is in Jy, not mJy
unc_full[xray_mask] = xray_counts_unc
unc_full[~xray_mask] = fnu_unc * 1e3 # IDL Lightning fnu is in Jy, not mJy
exp_full[xray_mask] = xray_phot['EXPOSURE']
We display the filter labels and the “flux” and uncertainty arrays here:
[53]:
t = Table()
t['filter'] = filter_labels_full
t['flux'] = obs_full
t['unc'] = unc_full
ascii.write(t, format='fixed_width_two_line')
filter flux unc
------------------ -------------------- ---------------------
XRAY_0.50_0.59_keV 103.16080387669922 17.06914388649152
XRAY_0.59_0.70_keV 105.2053121208817 17.39261962324014
XRAY_0.70_0.82_keV 159.13980601012312 22.506860760889985
XRAY_0.82_0.97_keV 220.28320154820105 28.426639814154843
XRAY_0.97_1.14_keV 252.40434296418772 31.560538780349464
XRAY_1.14_1.35_keV 252.55886556331126 31.66427014408168
XRAY_1.35_1.59_keV 259.58237594091764 32.537870928706354
XRAY_1.59_1.88_keV 237.50699902462856 30.63509272592005
XRAY_1.88_2.22_keV 108.6541633292519 19.791982010379417
XRAY_2.22_2.62_keV 76.37598680311142 16.38448381206126
XRAY_2.62_3.09_keV 90.13244771562292 17.0625173963706
XRAY_3.09_3.65_keV 63.96931056648404 15.393834234535772
XRAY_3.65_4.31_keV 79.15847060425958 17.17091023650916
XRAY_4.31_5.08_keV 63.43539087488492 16.55353507214626
XRAY_5.08_6.00_keV 42.96572103852924 15.947351032754547
ACS_F435W nan 0.0
ACS_F606W 0.03874064467041217 0.0007775114528953381
ACS_F775W 0.046118398755161556 0.0009312075720791517
ACS_F814W 0.04126685376453945 0.0008364606452776926
ACS_F850LP 0.05581402261861105 0.0011280738382122932
WFC3_F098M 0.053161199724363443 0.0010761650524693856
WFC3_F105W nan 0.0
WFC3_F125W 0.0633274593161555 0.001269562384159545
WFC3_F160W 0.06320390974575296 0.0012677310644130264
VIMOS_U nan 0.0
MOSAICII_U nan 0.0
ISAAC_Ks nan 0.0
HAWK-I_Ks nan 0.0
IRAC_CH1 0.20377759817500846 0.010189740485754798
IRAC_CH2 0.2847056678207428 0.014235625916151993
IRAC_CH3 0.44171788753618635 0.02209056507504984
IRAC_CH4 0.6298939819335938 0.031498072145069944
MIPS_CH1 2.303699951171875 0.12405841107268026
MIPS_CH2 7.647399902343749 0.9605496045803024
PACS_green 10.149000000000001 1.089519237469138
PACS_red 19.834999999999997 1.921944825761522
SPIRE_250 23.663 4.176323212777945
We can see that the X-ray bands have the counts, and the UV-IR bands are fluxes in terms of mJy.
We assemble a wavelength grid to integrate the X-ray models on to make sure that the bandpasses are covered at the redshift of the source:
[54]:
hc_um = (const.c * const.h).to(u.micron * u.keV).value
lam_05 = hc_um / 0.5
lam_70 = hc_um / 7.0
xray_wave_grid = np.logspace(np.log10(lam_70), np.log10(lam_05), 200) / (1 + redshift)
Note that the wavelength grid must be monotonically increasing.
Now, we’re ready to assemble the model - we’ll use a power law model first.
[55]:
lgh = Lightning(filter_labels_full,
redshift=redshift,
flux_obs=obs_full,
flux_obs_unc=unc_full,
SFH_type='Piecewise-Constant',
atten_type='Calzetti',
dust_emission=True,
agn_emission=True,
agn_polar_dust=True,
xray_mode='counts',
xray_stellar_emission='Stellar-Plaw',
xray_agn_emission='AGN-Plaw',
xray_absorption='tbabs',
xray_wave_grid=xray_wave_grid,
xray_arf=arf,
xray_exposure=exp_full,
galactic_NH=galactic_NH,
model_unc=0.10,
print_setup_time=True)
0.033 s elapsed in _get_filters
0.000 s elapsed in _get_wave_obs
0.551 s elapsed in stellar model setup
0.000 s elapsed in dust attenuation model setup
0.167 s elapsed in dust emission model setup
0.031 s elapsed in agn emission model setup
0.021 s elapsed in X-ray model setup
0.804 s elapsed total
/Users/eqm5663/Research/code/plightning/lightning/get_filters.py:138: RuntimeWarning: invalid value encountered in divide
transm_norm_interp = transm_interp / trapz(transm_interp, wave_grid)
The warning we see above is telling us that our X-ray bandasses don’t overlap with the UV-IR models. That’s ok.
Fit#
[117]:
priors = [UniformPrior([0, 1e3]), # SFH
UniformPrior([0, 1e3]),
UniformPrior([0, 1e3]),
UniformPrior([0, 1e3]),
UniformPrior([0, 1e3]),
ConstantPrior([0.020]), # Metallicity
UniformPrior([0, 5]), # tauV
ConstantPrior([2]), # alpha
# ConstantPrior([1]), # Umin
UniformPrior([0.1, 25]), # Umin
ConstantPrior([3e5]), # Umax
UniformPrior([0,1]), # Gamma
ConstantPrior([0.0047]), #qPAH
UniformPrior([11, 13]), # log L_AGN
UniformPrior([0.7, 1]), # cos i - Limited to Type-1 views.
ConstantPrior([7]), # tau 9.7
UniformPrior([0,1]), # polar dust tauV
ConstantPrior([1.8]), # stellar pop. pho. index
UniformPrior([1.0, 2.5]), # AGN pho. index
UniformPrior([-1.3, 1.3]), # log deviation from Lusso + Risaliti 2017
UniformPrior([1, 5e4]) # NH
]
Nwalkers = 64
p0s = [pr.sample(Nwalkers) for pr in priors]
p0 = np.stack(p0s, axis=-1)
Nsteps = 20000
const_dim = np.array([False, False, False, False, False,
True,
False,
True, True, True, False, True,
False, False, True, False,
True,
False, False,
False
])
[118]:
mcmc = lgh.fit(p0,
method='emcee',
Nwalkers=Nwalkers,
Nsteps=Nsteps,
priors=priors,
const_dim=const_dim)
/Users/eqm5663/Research/code/plightning/lightning/xray/agn.py:221: RuntimeWarning: divide by zero encountered in log10
np.log10(lnu_obs) + np.log10(self.specresp) - np.log10(self.phot_energ)
100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20000/20000 [10:55<00:00, 30.51it/s]
[58]:
print('MCMC mean acceptance fraction: %.3f' % (np.mean(mcmc.acceptance_fraction)))
chain, logprob_chain, t = lgh.get_mcmc_chains(mcmc,
discard=3000,
thin=500,
Nsamples=500,
const_dim=const_dim,
const_vals=p0[0,const_dim])
MCMC mean acceptance fraction: 0.203
WARNING: The integrated autocorrelation time is longer than N/50.
The autocorrelation estimate may be unreliable.
Plots#

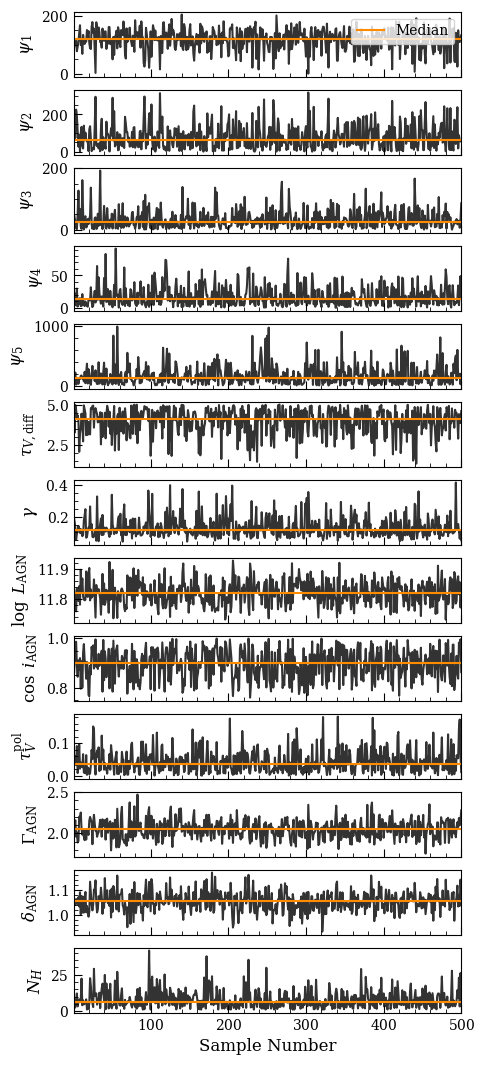

[59]:
fig, axs = lgh.chain_plot(chain, color='black', alpha=0.8)

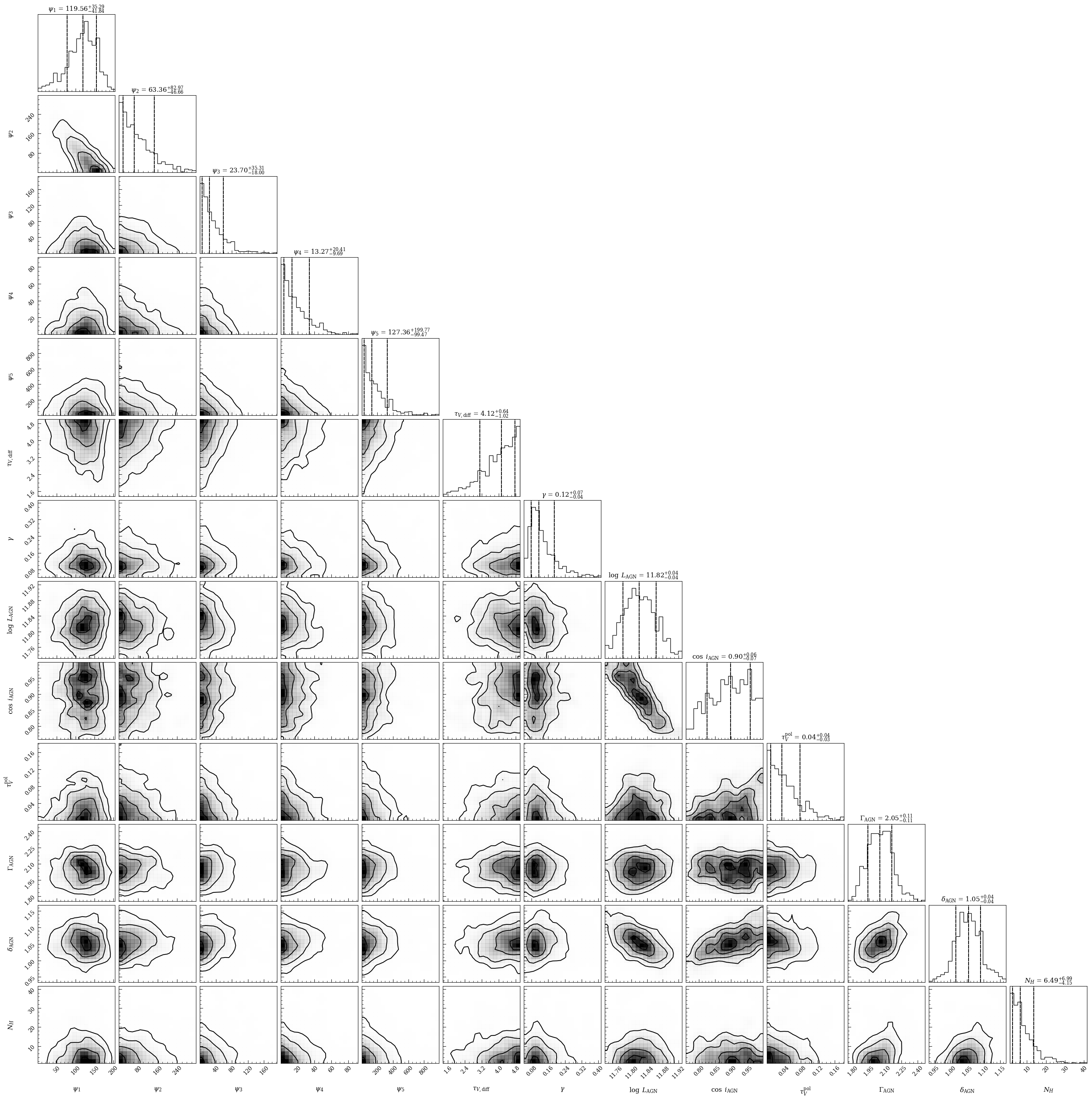

[60]:
fig = lgh.corner_plot(chain,
quantiles=(0.16, 0.50, 0.84),
smooth=1,
levels=None,
show_titles=True)

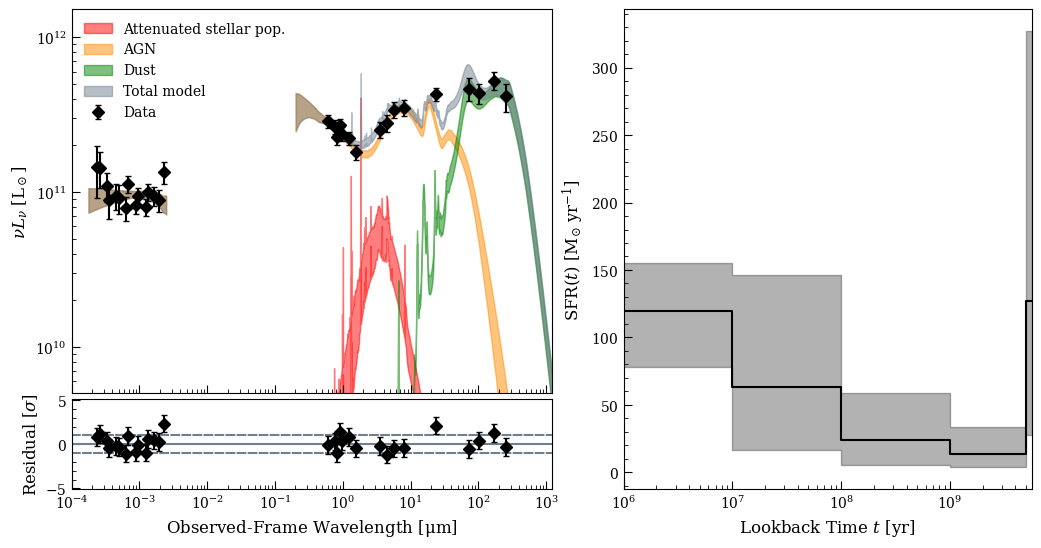

[119]:
from lightning.plots import sed_plot_morebayesian, sed_plot_delchi_morebayesian, sfh_plot
fig5 = plt.figure(figsize=(12,6))
ax51 = fig5.add_axes([0.1, 0.26, 0.4, 0.64])
ax52 = fig5.add_axes([0.1, 0.1, 0.4, 0.15])
ax53 = fig5.add_axes([0.56, 0.1, 0.34, 0.8])
fig5, ax51 = sed_plot_morebayesian(lgh, chain, logprob_chain,
plot_components=True,
ax=ax51,
legend_kwargs={'loc': 'upper left', 'frameon': False})
ax51.set_xticklabels([])
ax51.set_xlim(1e-4, 1200)
ax51.set_ylim(5e9,)
fig5, ax52 = lgh.sed_plot_delchi(chain, logprob_chain, ax=ax52)
ax52.set_xlim(1e-4, 1200)
fig5, ax53 = lgh.sfh_plot(chain, ax=ax53)
/Users/eqm5663/Research/code/plightning/lightning/stellar/pegase.py:449: RuntimeWarning: divide by zero encountered in log10
finterp = interp1d(self.Zmet, np.log10(self.Lnu_obs), axis=1)
/Users/eqm5663/miniconda3_arm64/envs/ciao-4.16/lib/python3.11/site-packages/scipy/interpolate/_interpolate.py:701: RuntimeWarning: invalid value encountered in subtract
slope = (y_hi - y_lo) / (x_hi - x_lo)[:, None]
Notably, this is a really different solution from what we would recover with IDL Lightning and is much closer to the xCIGALE solution. This is down to de-coupling the attenuation of the AGN and the stellar population. If we couple the attenuation of the two (assuming, basically, that we’re looking through the galaxy to see the AGN) by disabling the polar dust attenuation, we recover the same solution as IDL Lightning. Both are consistent with the data. Fitting the SED of any Type-1 AGN is its own special nightmare, and this one is so incredibly luminous in the far-IR as to imply a large mass of dust somewhere. This model assumes that it’s between us and the stars, and not between us and the AGN (supported by broad lines in the spectrum), implying in turn a pretty massive SFR. Be cautious in fitting AGN SEDs, and try (and compare) different models.

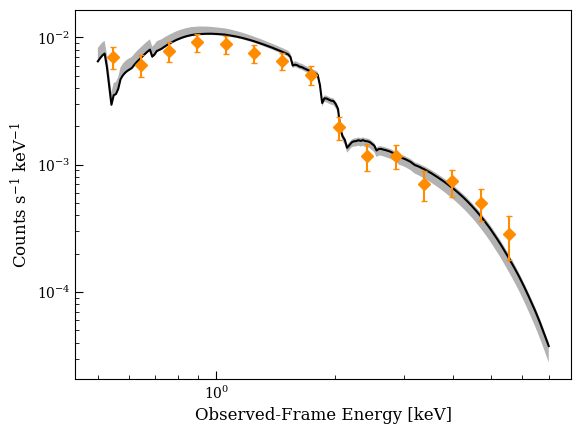

We can plot the X-ray portion of the SED in count-rate space, as if we’d fit it in Sherpa or Xspec:
[116]:
cr = lgh.xray_agn_em.get_model_countrate_hires(chain[:,-3:-1], lgh.agn, chain[:,12:16])
# Put the observations in counts s-1 Hz-1
# print(xray_phot['ENERG_LO', 'ENERG_HI', 'NET_COUNTS', 'NET_COUNTS_UNC'])
dE = xray_phot['ENERG_HI'] - xray_phot['ENERG_LO']
Emid = 0.5 * (xray_phot['ENERG_HI'] + xray_phot['ENERG_LO'])
exposure = lgh.xray_exposure[0]
countrate_obs = xray_phot['NET_COUNTS'] / exposure / dE
countrate_obs_unc = np.sqrt((xray_phot['NET_COUNTS_UNC'] / exposure / dE)**2 + 0.10**2 * countrate_obs**2)
bestfit = np.argmax(logprob_chain)
cr_best = cr[bestfit,:]
cr_lo, cr_hi = np.quantile(cr, q=(0.16, 0.84), axis=0)
fig, ax = plt.subplots()
ax.fill_between(lgh.xray_agn_em.energ_grid_obs,
lgh.xray_agn_em.nu_grid_obs * cr_lo / lgh.xray_agn_em.energ_grid_obs,
lgh.xray_agn_em.nu_grid_obs * cr_hi / lgh.xray_agn_em.energ_grid_obs,
alpha=0.3)
ax.plot(lgh.xray_agn_em.energ_grid_obs, lgh.xray_agn_em.nu_grid_obs * cr_best / lgh.xray_agn_em.energ_grid_obs)
ax.errorbar(Emid, countrate_obs, yerr=countrate_obs_unc, linestyle='', marker='D', markerfacecolor='darkorange', color='darkorange')
ax.set_xscale('log')
ax.set_yscale('log')
ax.set_xlabel('Observed-Frame Energy [keV]')
ax.set_ylabel(r'Counts s$^{-1}$ keV$^{-1}$')
[116]:
Text(0, 0.5, 'Counts s$^{-1}$ keV$^{-1}$')
[62]:

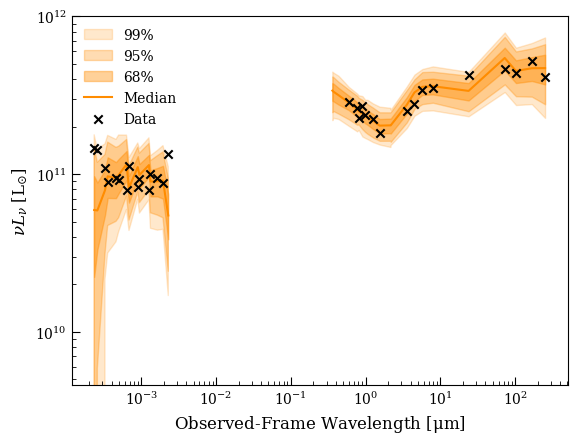

from lightning.ppc import ppc, ppc_sed
pvalue, chi2_rep, chi2_obs = ppc(lgh, chain, logprob_chain)
fig, ax = ppc_sed(lgh, chain, logprob_chain)
ax.legend(loc='upper left')
print('p (power-law) = %.2f' % pvalue)
/Users/eqm5663/Research/code/plightning/lightning/ppc.py:77: RuntimeWarning: invalid value encountered in divide
chi2_rep = np.nansum((Lmod - Lmod_perturbed)**2 / total_unc2, axis=-1)
p (power-law) = 0.61
